D6 ATF

As ATF requirements lean toward lighter viscosity, this one has ultimate stability.

Check Compatibility

Didn't Find Your Vehicle?
Didn't Find Your Vehicle?

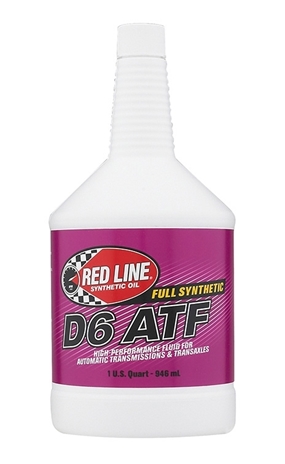

D6 ATF

  • Our lowest viscosity, most shear-stable ATF for consistent operation, designed to satisfy Dexron-VI®, Mercon®SP, Mercon®LV, Honda DW-1, Toyota WS, Mercedes Benz NAG-2, ZF-LG 6, 6+ and 8 fluids
$12.95
Find Near You

With eight different combinations of viscosity, slipperiness, and OE-recommended additives packages, Red Line offers the widest selection of ATF available

  • Red Line offers the widest selection of fully-synthetic ATF on the market today
  • Each offer improved thermal stability, maintain viscosity levels, and feature lower volatility while providing the required frictional characteristics of each fluid's OEM-style replacement
  • Reduced oxidation and lower volatility at high temperature
  • Allows high-temp operation without varnishing valves and clutches
  • Extended drain intervals

Typical Properties

Vis @ 100°C, cSt 6.4
Vis @ 40°C, cSt 30.7
Viscosity Index 166
Pour Point, °C -60
Pour Point, °F -76
Brookfield Viscosity @ -40°C, Poise 45

Available Sizes

Quart 30704
Gallon 30705
5 Gallon* 30706
16 Gallon* 30707
55 Gallon* 30708

*Only available from our dealers

Red Line full-synthetic D6 ATF is a lower viscosity version of the D4ATF and is designed for better fuel efficiency in CAFE testing. Dexron VI requires a different approach to a conventional ATF formulation. Rather than beginning with a 7.5 cSt fluid and allowing a viscosity loss in use to drop to 5.5 cSt, the Dexron VI fluid requires a starting viscosity of less than 6.4 and a final drop to no less than 5.5 cSt. Red Line D6 will drop to no less than 6.1 cSt. Since the final viscosity after use of these fluids are similar, Dexron VI fluids can be used where Dexron III fluids
were previously recommended (with the exception of some manual transmission applications, our customers report).

D6 ATF also provides significantly improved gear protection and will provide a GL-4 level of gear protection. The balanced frictional characteristics provide smooth and consistent shifts for extended drain intervals. The superior stability compared to petroleum ATFs allows high-temperature operation without varnishing valves and clutches which leads to transmission failure.



Popular product and application crossover:

Dexron® VI (GM #88861003), Mercon® SP, Mercon® LV, Mercon®, Dexron® III '99 on automatic applications

BMW - Dexron® VI - BMW #83 22 0 432 807, 83 22 0 397 114
('06 on 6L45E X3, 6L809E, '07 on 3 Series, '08 on 1 Series with GM GA6L45R 6 speed automatic)

Ford Mercon® SP - XT-6-QSP
(Torque Shift 5-speed Automatic 5R110W, '03 on 6.0 liter diesel  trucks, 2005-09 V-10, ZF 6HP26 6R60/6R75)

Ford Mercon® LV - XT-10-QLV
('08- Focus, '09- F-150, F-250SD, Expedition, Navigator 6R80)

Honda/Acura DW-1, Acura ATF Type 3.0

Mercedes Fuchs/Mobil/Shell 3353, MB Sheet 236.12  (NAG-2, 722.9,
7 speed transmission - MB # A001 989 45 03 10)

Mercedes Mobil/Shell ATF 134, Fuchs/Titan 4134 (MB Sheet 236.14 NAG-2, 722.9 7G-Tronic supersedes 3353, MB # 001 989 68 03 10)

Mercedes - Dexron® VI MB Sheet 236.41 (722.550 8 speed
ML Class hybrid type 164.195)

Mitsubishi Dia Queen ATF-J2, Mitsubishi # 4040610, 4031610

Mitsubishi SP-IV - Hyundai SP-IV - Kia SPH-IV

Nissan Matic S

Toyota/Lexus WS, AW-1 - JWS 3324, NWS09638
(VW/Audi 0C8 8 speed # G 055 540, SAAB '03 on 9-3 6 speed # 93 165 147, Volvo # 31 256 774, 31 256 775)

ZF Lifeguard 6 & 6 Plus - Shell M1375.4
('02 on 6 & 7 Series, '06 on 3, 5 Series and X5 with ZF 6 speed automatic BMW# 83 22 0 142 516, 83 22 0 144 137, 83 22 0 406 929, VW/AUDI # G 055 005, G 055 162 )

ZF Lifeguard 8 - Shell M-L12108
(BMW # 83 22 2 152 426 and VW/AUDI # G 060 162)


Dexron is a registered trademark of General Motors Corporation.
Mercon is a registered trademark of Ford Motor Company.
