D4 ATF

Versatile and stable. For both automatic and manual transmissions.

Check Compatibility

Didn't Find Your Vehicle?
Didn't Find Your Vehicle?

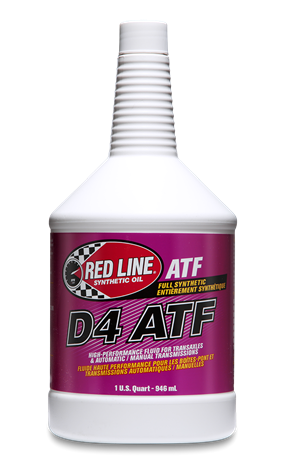

D4 ATF

  • Our most versatile ATF, use where Dexron III®, Dexron II®, Mercon® and Mercon V® fluids are recommended, for use in automatic, manual transmissions and power steering
  • Popular applications: Toyota Type T-III and T-IV, Honda ATF-Z1, Nissan Matic D, J & K, Diamond SP-II, SP-III, Mazda ATF M-V, most BMW and Audi/VW automatic transmissions
$12.49
Find Near You

Since most GL-5 gear oils for differentials are too slippery for manual transmissions, Red Line offers these products that ensure proper shifting while providing ultimate wear protection

  • Appropriate coefficient of friction for most manual transmission synchronizers (other's synthetic gear oils are often too slippery for proper synchro engagement)
  • Red Line offers lubricants to pinpoint nearly every transmission application
  • MTL, MT-85 & MT-90 are not for use in differentials with hypoid gears
  • Excellent gear and synchro protection, balanced slipperiness for easier shifting in cold climates
  • Excellent for high- and low-mile transmissions
  • Compatible with petroleums and other synthetics

Typical Properties

SAE Viscosity Grade (Motor Oil) 0W20
SAE Viscosity Grade (Gear Oil) 70W80
Vis @ 100°C, cSt 7.5
Vis @ 40°C, cSt 34
Viscosity Index 198
Pour Point, °C -60
Pour Point, °F -76
Brookfield Viscosity @ -40°C, Poise 52

Available Sizes

Quart 30504
Gallon 30505
5 Gallon* 30506
16 Gallon* 30507
55 Gallon* 30508

*Only available from our dealers

D4 ATF is a full-synthetic product designed with superior low-temperature properties compared to a Dexron III® fluid, and the improved shear-stability requirements which is part of the Mercon V® specifications.

D4 ATF also provides a GL-4 level of gear protection, making it a superior product for transmissions and transaxles. The balanced frictional characteristics provides smooth and consistent shifts for extended drain intervals. The superior stability compared to petroleum ATFs allows high-temperature operation without varnishing valves and clutches which leads to transmission failure.


Suitable replacement for the following products:
Dexron II®, III® and Dexron IIIH®

Mercon® and Mercon V®

Esso LT71141
(BMW, 93 on 3, 5 and 7 series ZF 5HP transmissions)
(VW/Audi  automatic from 1993)

Shell LA2634
(BMW Automatic 98-00 3 series, 94-95 5 series, 98-00 528, 94-00 7 and 8 series)

Shell ATF 3403 M115
(Mercedes 5&6 sp, Jeep NAG-1, Porsche & Jaguar Automatic)

Texaco ETL7045
(BMW  01 3 series Xi, X5 3.0, Z3, 98-05 3 series, w/ GM5, 99-00 5 series w/GM5, 04-08 X3 w/GM5)

Texaco ETL8072 B
(BMW 00-05 5 series & X5 w/ GM5)

Idemitsu K17 (Jatco 3100) WSS-M2C922-A1

Honda ATF Z1
(Honda/Acura automatic)

Diamond SP-II & SP-III
(Mitsubishi, Hyundai and Kia automatic)

Castrol Transmatic J, Transmax J, Transmax E, Pennsoil ATF J, Idemitsu HP, Subaru ATF-HP
(Subaru 05 on WRX, Impreza, Legacy, Outback, Tribeca & 06 on Forester)

Nissan Matic D, J & K

Mazda ATF M-V
(03 on Mazda6, 04 on Mazda3, 06 on Mazda5, 06 on Ford Fusion w/FNR5 automatic transaxle)

Mobil ATF 3309, JWS 3309, Toyota T-IV and T-III, T3, T4, ATF  JWS 2312D, 3314, 3317. Aisin-Warner applications:
(96-'97 Supra Turbo, '98 Supra, '00 on Echo, Celica, '01-'03 Prius, '01-'03 Prius, '02-'05Camry and 4-cyl. Solara, Rav 4-4WD '01-'04 Highlander, Rav4, '03-'04 Sequoia, Tundra, Tacoma 2.7L, 3.4L, '03-'04 4-Runner w/4 speed,'03 Land Cruiser, '05 Tacoma)
(Volvo '01 to '04 C70, '01 on S40, V40, S60, S60R, '99 on V70, V70R and XC70 w/AW50AWD or AW55-50SN transaxle)


Dexron is a registered trademark of General Motors Corporation.
Mercon is a registered trademark of Ford Motor Company.
